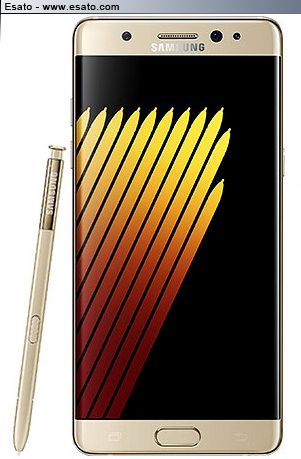

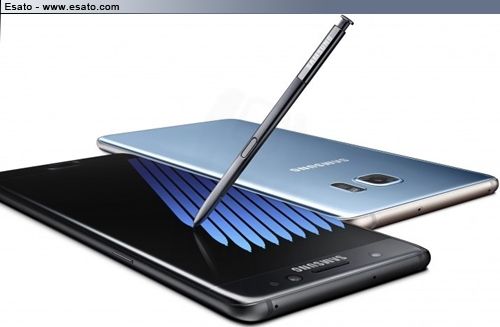

Samsung Galaxy Note 7 Key Features:
- 3G Network: HSDPA 850 / 900 / 1900 / 2100
- 4G Network: LTE 800 / 850 / 900 / 1800 / 2100 / 2600
- Single SIM (Nano-SIM) Or Dual SIM (Nano-SIM, Dual Stand-By)
- Connectivity: Wi-Fi 802.11 a/b/g/n/ac, Dual Band, Wi - Fi Direct, Wi - Fi HotSpot, Bluetooth v4.2 With A2DP, LE, ANT+, USB 3.1, Type-C 1.0 Reversible Connector, USB On The Go, Infrared And NFC
- GPS With A-GPS Support, Glonass And Beidou
- Dimensions: 153.5 x 73.9 x 7.9 mm
- Weight: 169 Grams.
- Display 5,7" Super Amoled QHD Dual Edge (~518 Ppi Pixel Density) With HDR10, Always On Display And Corning Gorilla Glass 5
- 64 Or 128 GigaBytes Memory Internal (UFS 2.0)
- Expansive Memory Up To 256 Gigabytes
- 4 GigaBytes Ram LPDDR4 (3.383 GigaBytes After The System Boot) Or 6 GigaBytes Ram LPDDR4 (5.381 GigaBytes After The System Boot)
- CPU Samsung Exynos 8890 Quad Core Exynos M1 (Dual 2.60 GHz And Dual 2.28 Ghz) Cortex A72 And Quad Core 1.58 GHz Cortex A53
(SemiConductor Technology 14 nm LPP)
- GPU Samsung Exynos Mali – T880 MP12 (DuoDeca - Core Graphics @650 MHz)
- CPU Qualcomm MSM8996 Snapdragon 820 Kyro Dual Core 2.15 GHz And Dual Core 1.59 GHz (SemiConductor Technology 14 nm LPP)
- GPU Adreno 530 (Quad - Core Graphics @650 MHz)
- Android 6.0.1 (Marshmallow) With GraceUX UI Planned Upgrade To 7.0 (Nougat)
- Microsoft Apps (Word, Excel, PowerPoint And Reader PDF)
- Camera Dual Pixel 12.1 MP With OIS And Led Flash
- CamCorder UltraHD (2160p @30 FPS) With HDR Mode Streaming
- 5 MP Front Facing Camera With Selfie Flash For Video Chat And CamCorder QHD (1440p @30 FPS)
- Audio Processor Qualcomm WCD9335
- Fingerprint Sensor
- Iris Scanner
- Secure Folder
- IP68 Certified (Dust Proof And Water Resistant Over 1.5 Meter And 30 Minutes)
- S-Pen (Recognizes 4,096 Different Pressure Levels)
- Screen Off Memo On Always On Display
- Samsung Knox
- Motion WallPaper
- Samsung Pay (Visa, MasterCard, AMEX Certified)
- Air Command
- Samsung Cloud (15 GB Storage)
- S-Voice Natural Language Commands And Dictation
- Active Noise Cancellation With Dedicated Mic
- Stay Fit
- Standard Battery Li-Po 3500 mAh (Non-Removable) With Fast Battery Charging (60% In 30 Min)
- Fast Charging Both On Wired And Wireless
- Wireless Charging Compatible With WPC And PMA
- Available In Gold Platinum, Silver Titanium Black Onix And Blue Coral Colors
Technichal Specifications Digital Camera Galaxy Note 7:
* Optical Assembly: Largan Precision Optics (26mm in 35mm equiv.)
* Construction Lens: 6 Elements Plastic
* F-Number: f/1.7
* Focal Length: 4.20mm
* Focus Range: 6 Cm - Infinity
* Iso Sensitivity: 40 - 1250
* Shutter Speed: Max - (10s) / Min - (1/24000s)
* Image Stabilization: Optical Stabiliser (OIS): Dual Axis Gyroscope
* Features Digital Camera: Dual Pixel Focusing, Object Tracking Autofocus - Touch Focus - Face/Smile Detection - Panorama - HDR - Geo Tagging
* Flash: Led (4rd Generation)
* Reach In Shooting Of Flash: Up To 3 Meters
* AF Light: Yes (Led 4rd Generation)
* ISP: Samsung C3
* Image Sensor: CMOS BSI SONY EXMOR RS IMX260 Or CMOS BSI ISOCELL SAMSUNG S5K2L1 (Market Dependent)
* Format: 1/2.5"
* Surface: (5.76 mm x 4.29 mm)
* Pixel Size: 1.44 Microns
* Total Pixel Are Used: 4032 x 3024 - 12.19 MP
* Maximum Effective Pixels Resolution: 4032 x 3024 For (4:3) Or 4032 x 2268 For (16:9)
* Other Features: Dual Shot And Simultaneous FullHD Video And Image Recording
Technichal Specifications Digital Camcorder Galaxy Note 7:
* Maximum Resolution Digital Camcorder: ULTRAHD 2160p (3840 x 2160)
* Quantity Frames Per Second During Recording Of Video: 30 FPS
* Recording Codec Used To Do Video: MP4
* Video Bit Rate: 48.2 Mbps
* Iso Sensitivity: 40 - 1600
* Recording Audio Codec Used To Do Video: AAC Stereo
* Audio Bit Rate: 256 Kbps
* Audio Sampling Rate: 48.0 KHz
* Light Assist For The Record Video: Yes (Single Led 4rd Generation)
* Features Digital Camcorder: Optical Video Stabilization, HDR Mode Streaming And Continuous Autofocus
Technichal Specifications Front Digital Camera Galaxy Note 7:
* Optical Assembly: Samsung Lens (21mm in 35mm equiv.)
* Construction Lens: 4 Elements Plastic
* F-Number: f/1.7
* Focal Length: 2.10mm
* Iso Sensitivity: 50 - 1250
* Shutter Speed: Max - (1/7s) / Min - (1/9728s)
* Sensor: CMOS BSI SAMSUNG S5K4E6XP
* Format: 1/4"
* Surface: (3.20 mm x 2.40 mm)
* Pixel Size: 1.34 Microns
* Maximum Effective Pixels Resolution: 2592 x 1944 For (4:3)
Technichal Specifications Front Digital Camcorder Galaxy Note 7:
* Maximum Resolution Digital Camcorder: QHD 1440p (2560 x 1440)
* Quantity Frames Per Second During Recording Of Video: 30 FPS
* Recording Codec Used To Do Video: MP4
* Video Bit Rate: 25.2 Mbps
* Iso Sensitivity: 50 - 1250
* Recording Audio Codec Used To Do Video: AAC Stereo
* Audio Bit Rate: 256 Kbps
* Audio Sampling Rate: 48.0 KHz
STATUS: Discontinued (Units Catch Fire Or Explode During Use Or Battery Charging)[ This Message was edited by: Masterful on 2016-10-15 06:00 ]
--
Posted: 2016-08-02 17:10:12
Edit :
Quote
Samsung Galaxy Note7: Official Introduction
https://www.youtube.com/watch?v=a0a6Y9JvPqo
--
Posted: 2016-08-02 17:15:07
Edit :
Quote
Hands On With The Samsung Galaxy Note7
http://www.anandtech.com/show[....]-with-the-samsung-galaxy-note7
--
Posted: 2016-08-02 17:40:12
Edit :
Quote
Samsung Galaxy Note7: First impressions
http://www.gsmarena.com/samsung_galaxy_note7-review-1472.php
--
Posted: 2016-08-02 17:45:30
Edit :
Quote
I'm really interested to see how the stylus and screen work underwater and if there are issues if you inset/eject the pen underwater as well. I'd be very impressed if you can take notes accurately underwater, waiting for the videos of that.
--
Posted: 2016-08-02 17:55:54
Edit :
Quote
Samsung Galaxy Note 7 (iris scanner): Here is how it works
https://www.youtube.com/watch?v=R8l71D8vGBw
--
Posted: 2016-08-02 18:00:30
Edit :
Quote
Anyone else feeling meh about this release?
Not that I really care about this, because CPU and GPU are good enough as it is today.
Still I was expecting an upgraded SoC and the look feels way too generic now.
The camera is the same, so we will see over-processed shots with oversaturated colours.
[ This Message was edited by: McKinley on 2016-08-02 19:32 ]
--
Posted: 2016-08-02 19:39:43
Edit :
Quote
Definitely not feeling meh about this . Yes many upgrades are minor these days because phones already have great features ! I think Sony is the king of minor upgrades - this one has quite a few over the last years Note. Snapdragon 821 would be nice but it is only a minor upgrade to 820- which is the best at the moment for android anyway
The only thing I am not crazy about is edge screen, yes it looks good but not convinced is practical. Love how much memory is available
[ This Message was edited by: aussieland1 on 2016-08-02 21:24 ]
--
Posted: 2016-08-02 20:16:32
Edit :
Quote
Would make a nice upgrade from my Note 4, I'm loving it in Black Onyx.
64GB Internal Mem + IP68 Water and Dust Resistance + 3500mAh battery and Iris Scanner.
BTW, apparently the Edges aren't as curved as the S7 Edge.
Let's see what the LG V20 brings though.
--
Posted: 2016-08-02 22:01:21
Edit :
Quote
Such a shame is only available in Sep in Europe
If I could get the 256 gb memory stick offer I think I would preorder one
Also happy to see usb type c
--
Posted: 2016-08-02 22:26:06
Edit :
Quote
