< Esato Forum Index > Manufacturer Discussion > Samsung > Samsung Galaxy Note 10 Announced Bookmark topic

Tibagy Posts: > 500

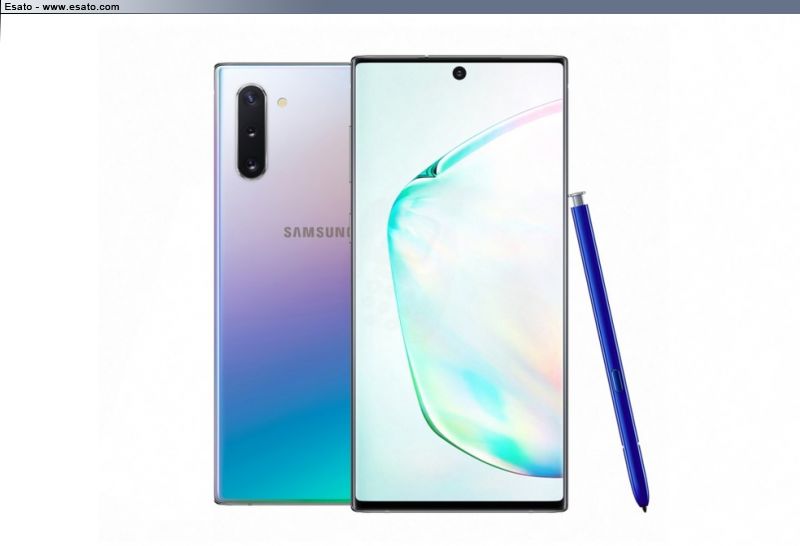

Samsung Galaxy Note 10 Key Features:

- 3G Network: HSDPA 850 / 900 / 1900 / 2100

- 4G Network: LTE 700 / 800 / 850 / 900 / 1900 / 2100 / 2600

- Single SIM (Nano-SIM) Or Hybrid Dual SIM (Nano-SIM, Dual Stand-By)

- Connectivity: Wi-Fi 6, Dual Band, DLNA, Wi - Fi Direct, Wi - Fi HotSpot, Bluetooth v5.0 With A2DP/LE/APT-X HD, NFC, MicroUSB v3.1 And Type-C 1.0 (Reversible Connector)

- GPS With A-GPS Support, Glonass, Beidou And Galileo

- Dimensions: 151 x 71.8 x 7.9 mm

- Weight: 168 Grams.

- Display 6,3" Dynamic Amoled FullHD+ Curved Edges (~401 PPI Pixel Density) With HDR 10, Alaways On Display And Corning Gorilla Glass 6

- 256 GigaBytes Memory Internal (UFS 3.0)

- No Expansive Memory Up

- 8 GigaBytes Ram LPDDR4X (LTE Model Only) Or 12 GigaBytes Ram LPDDR4X (5G Model Only)

- CPU Samsung Exynos 9825 (Dual - Core M4 2.73 Ghz, Dual Core Cortex A75 2.40 GHz And Quad - Core Cortex A55 1.95 GHz)
(SemiConductor Technology 7 nm LPP EUV)

- GPU Samsung Exynos Mali-G76 MP12 (DuoDeca - Core Graphics @702 Mhz)

- CPU Qualcomm Snapdragon 855 (1 x Kyro 485 2.84 Ghz, Triple Core Kyro 485 2.42 GHz And Quad Core Kyro 485 Silver 1.70 GHz)
(SemiConductor Technology 7 nm LPP)

- GPU Adreno 640 (Octa - Core Graphics @585 Mhz)

- Android 9.0 (Pie) With Samsung One UI

- Office Document Viewer (Word, Excel, PowerPoint And Reader PDF)

- Triple Camera 12 MP + 12 MP + 16 MP (Wide Angle, Telephoto And Ultra Wide Angle) With OIS And Led Flash

- CamCorder UltraHD (2160p @60/30 FPS) With OIS, 4K HDR Mode And Super Slow Motion FullHD (1080p @960 FPS)

- 10 MP Front Facing Camera Wide Angle Lens With OIS, Dual Pixel Auto Focus, HDR, Display Flash And CamCorder UltraHD (2160p @30 FPS)

- FingerPrint Sensor Reader (Under Display)

- Stereo Speakers

- Dolby Atmos/AKG Sound

- Qualcomm WCD9341 Audio Codec

- S-Pen: BLE S-Pen 5.8 x 4.35 x 105.08 mm, 3.04 Grams Unibody, Lithium Titanate Battery (LTO) Up To 10 Hours Of Stand-By, 6-Axis Sensor, Including Gyro And Acceleration Sensor

- Active Noise Cancellation With Dedicated Mic

- IP65/IP68 Certified (Dust/Water Proof Over 1.5 Meter And 30 Minutes)

- Samsung Pay

- Standard Battery Li-Ion 3500 mAh (Non-Removable) With Fast Battery Charging 25W

- Available In Aura Glow, Aura White And Aura Black Colors

Technichal Specifications Digital Camera Galaxy Note 10:

* Optical Assembly: Largan Precision Optics (26mm In 35mm)
* Construction Lens: 6 Elements Plastic
* F-Number: f/1.5 Or f/2.4
* Focal Length: 4.30mm
* Focus Range: 6 Cm - Infinity
* Iso Sensitivity: 50 - 1250
* Shutter Speed: Max - (10s) / Min - (1/24000s)
* Image Stabilization: Optical Stabiliser (OIS): Tri Axis Gyroscope
* Features Digital Camera: Dual Pixel Focusing, 2X Optical Zoom, Object Tracking Autofocus, Touch Focus, Face/Smile Detection, Panorama
* Flash: Led (4rd Generation)
* Reach In Shooting Of Flash: Up To 3 Meters
* AF Light: Yes (Led 4rd Generation)
* ISP: Samsung C6
* Image Sensor Wide Angle: CMOS SAMSUNG ISOCELL SLSI SAK2L4 Or CMOS BSI SONY EXMOR RS IMX345 (Market Dependent)
* Format: 1/2.55"
* Surface: (5,88 mm x 7,68 mm)
* Pixel Size: 1.4 Microns
* Maximum Effective Pixels Resolution: 4032 x 3024 For (4:3)
* Other Features: Simultaneous 4K Video And 9 MP Image Recording, Auto HDR And Geo Tagging
* Image Sensor Telephoto: CMOS SAMSUNG ISOCELL SLSI S5K3M3SM
* Pixel Size: 1.0 Micron
* Maximum Effective Pixels Resolution: 4032 x 3024 For (4:3)
* F-Number: f/2.1
* Focal Length: 6.00mm
* Iso Sensitivity: 40 - 1250
* Image Sensor Ultra Wide Angle: CMOS SAMSUNG ISOCELL SLSI S5K3P9
* Pixel Size: 1.0 Micron
* Maximum Effective Pixels Resolution: 4608 x 3456 For (4:3)
* F-Number: f/2.2
* Focal Length: 1.80mm
* Iso Sensitivity: 50 - 1250

Technichal Specifications Digital Camcorder Galaxy Note 10:

* Maximum Resolution Digital Camcorder: ULTRAHD 2160p (3840 x 2160)
* Quantity Frames Per Second During Recording Of Video: 60 FPS
* Recording Codec Used To Do Video: MP4
* Video Bit Rate: 73.6 Mbps (Codec H.264) Or 42.3 Mbps (Codec H.265)
* Iso Sensitivity: 50 - 4000
* Shutter Speed: Max - (1/30s) / Min - (1/24000s) For Both Cameras
* Recording Audio Codec Used To Do Video: AAC Stereo
* Audio Bit Rate: 256 Kbps
* Audio Sampling Rate: 48.0 KHz
* Light Assist For The Record Video: Yes (Single Led 4rd Generation)
* Features Digital Camcorder: Optical Video Stabilization And Continuous Autofocus

Technichal Specifications Front Digital Camera Galaxy Note 10:

* Optical Assembly: Samsung Lens Wide Angle 26mm
* Construction Lens: 6 Elements Plastic
* F-Number: f/2.2
* Focal Length: 3.30mm
* Iso Sensitivity: 50 - 1600
* Shutter Speed: Max - (1/13s) / Min - (1/10624s)
* Sensor: CMOS BSI SONY EXMOR RS IMX374 Or CMOS SAMSUNG ISOCELL SLSI S5K3J1 (Market Dependent)
* Pixel Size: 1.22 Microns
* Maximum Effective Pixels Resolution: 3648 x 2736 For (4:3)
* Features Digital Camcorder: Dual Pixel Autofocus And Auto HDR

Technichal Specifications Front Digital Camcorder Galaxy Note 10:

* Maximum Resolution Digital Camcorder: ULTRAHD 2160p (3840 x 2160)
* Quantity Frames Per Second During Recording Of Video: 30 FPS
* Recording Codec Used To Do Video: MP4
* Video Bit Rate: 48.3 Mbps
* Iso Sensitivity: 50 - 4000
* Recording Audio Codec Used To Do Video: AAC Stereo
* Audio Bit Rate: 256 Kbps
* Audio Sampling Rate: 48.0 KHz
* Light Assist For The Record Video: No
* Features Digital Camcorder: Continuous Autofocus

[ This Message was edited by: Tibagy on 2019-09-18 01:30 ]

--
Posted: 2019-08-08 02:34:52
Edit : Quote

Tibagy Posts: > 500

Samsung Galaxy Note10 Arrive With New S Pen And Faster Charging

https://www.gsmarena.com/sams[....]faster_charging-news-38567.php
--
Posted: 2019-08-08 02:44:48
Edit : Quote

Tibagy Posts: > 500

Amazing Review

https://www.gsmarena.com/samsung_galaxy_note10-review-1976.php
--
Posted: 2019-09-18 02:00:13
Edit : Quote

Tibagy Posts: > 500

Video Review

https://www.youtube.com/watch?v=384x_zHMEn8
--
Posted: 2019-09-18 02:05:03
Edit : Quote

Tibagy Posts: > 500

Samsung Galaxy Note 10 Drop Test: Shattering World's Most Beautiful Phone

https://www.youtube.com/watch?v=1P_t2RXEtvI
--
Posted: 2019-09-18 02:10:17
Edit : Quote

Tibagy Posts: > 500

Samsung Galaxy Note10 And Note10+ Are The First Wi-Fi Certified 6 Smartphones

https://news.samsung.com/glob[....]tandards-in-wi-fi-connectivity
--
Posted: 2019-09-18 02:16:28
Edit : Quote
